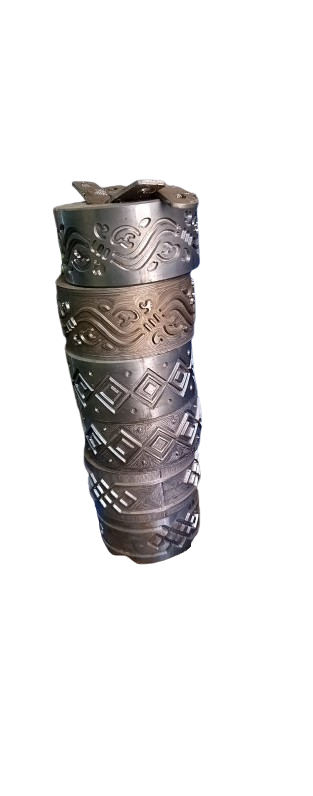

Swirl & Diamond Geometric Embossing Rings
Swirl & Diamond Geometric Embossing Rings are modular, precision-machined rings that combine swirl and diamond patterns to create visually complex, dual-pattern emboss effects. These rings are shaft-mounted and can be stacked or spaced in custom configurations on a common mandrel, offering extreme flexibility for diverse embossing product requirements without investing in full custom rollers. The hardened alloy steel construction with chrome engraving ensures durability and consistent pattern transfer over extended production life.
Key Specifications
- Material
- Alloy Steel
- Surface
- Chrome Engraved
- Pattern
- Swirl + Diamond (combined zones)
- Mounting
- Shaft / Mandrel mounted
- Ring Width
- Custom
- Bore Tolerance
- H7 precision bore
Features
- Modular ring design — mix and match patterns
- Combined swirl and diamond dual-pattern
- Stackable on common shaft/mandrel
- Reduces tooling investment for multiple patterns
- Precision bore for accurate, concentric mounting
- Hardened alloy steel with chrome engraving
Applications
- Flexible Production Embossing Setups
- Foil Stamping
- Packaging Film Embossing
- Multi-pattern Laminate Production
